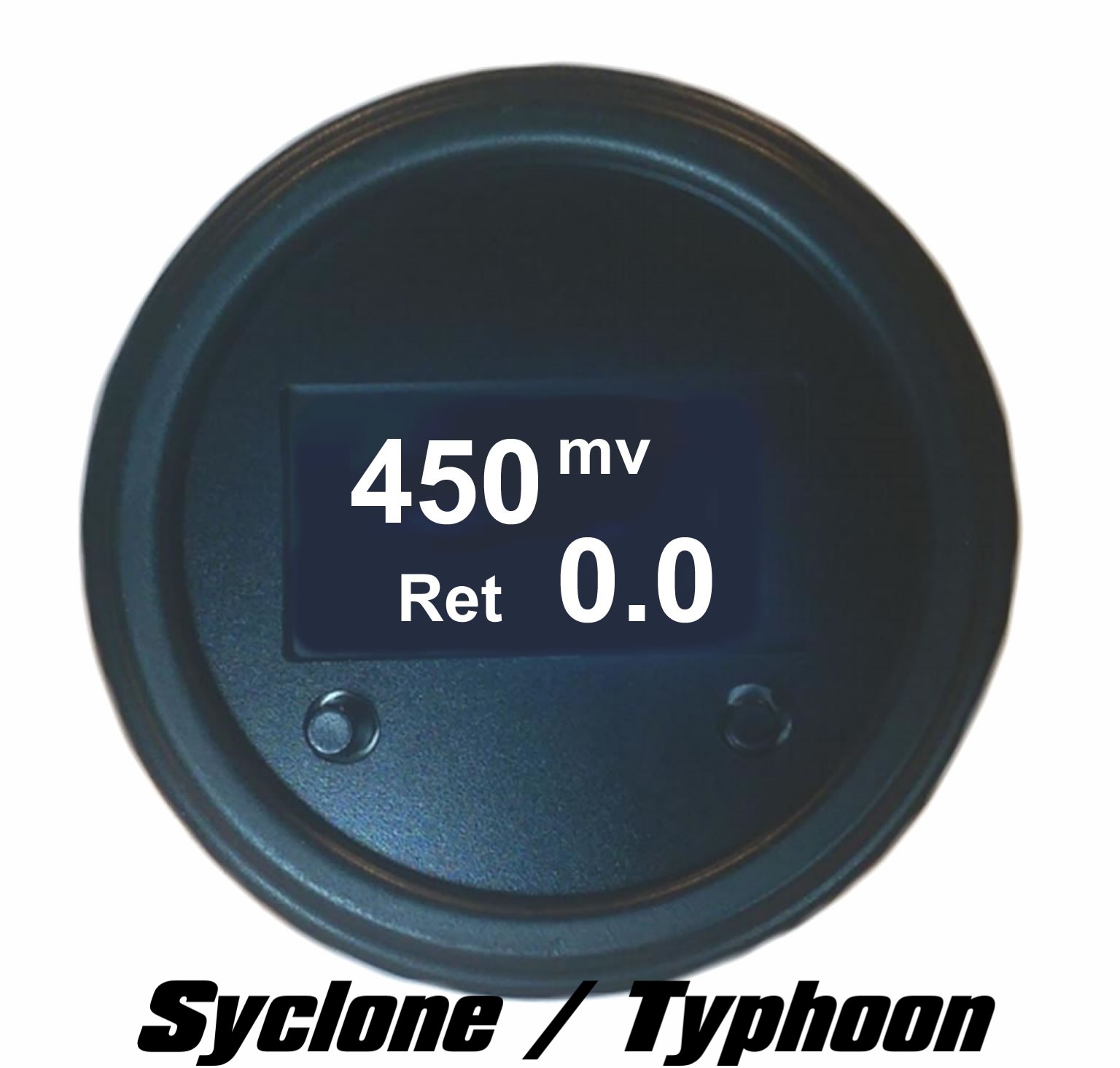

Scanmaster-G Gauge Syclone/Typhoon

Your Price: $259.99

Small gauge scantool to help tune and troubleshoot. Black gauge with black bezel. This fits into a gauge pod and is normally permanently mounted.

Part Number: 6004

Availability: Out of Stock, back soon

Quantity

Description

New Gauge Version! Excellent small scantool for monitoring Knock retard, O2 readings, sensors, etc.
This one has a black bezel and black face.

Simple hookup, 12v, gound, and one wire connects to ALDL plug under radio.

Has many new features!
- Dot matrix OLED display, clear and readable, 128 x 64 pixels
- Size is a 2-1/16" gauge
- Captures the leanest reading and highest knock for immediate recall, along with the MPH's where it occurred
- Has a bluetooth module, which will transmit data to a compatible device for logging (like Tunerpro)
- Displays wideband AFR when using a compatible chip (Velosyty), and have a wideband system connected to ECM

Will show you:

mv-Oxygen Sensor
Ret. -Knock Retard
MAP -Manifold pressure
Boost -Boost
AFR -Air/Fuel Ratio
bat -Battery Volts
INT -Integrator
BLM -Block Learn (BLM)
Speed -Miles per hour
Coolant -Coolant Temp
Air Temp -Air Temp Sensor
RPM -Engine RPM
TPS -Throttle Position Sensor
IAC -Idle Air Control
O2 CC -Cross Counts
Trouble -Malfunction Code
Inj Pw -Injector Pulsewidth
Spark Adv -Spark Advance
Wstg DC -Boost solenoid duty cycle
Indicators for park/neutral, intercooler pump, TCC lockup
